Flashtech TRI-FORGE Off-Road Light

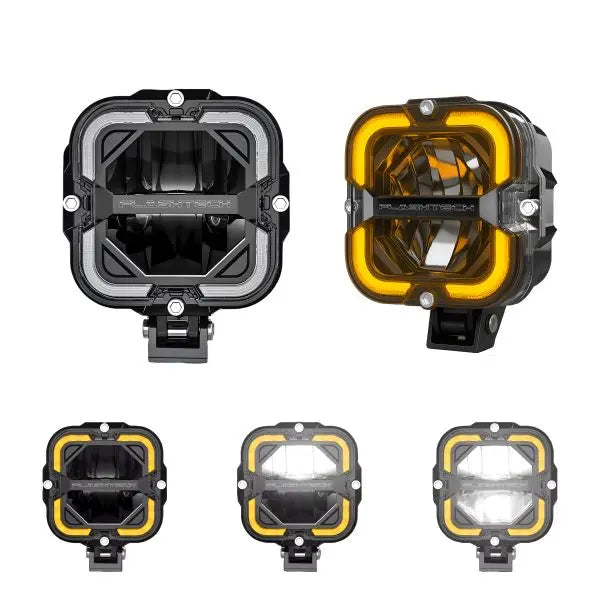

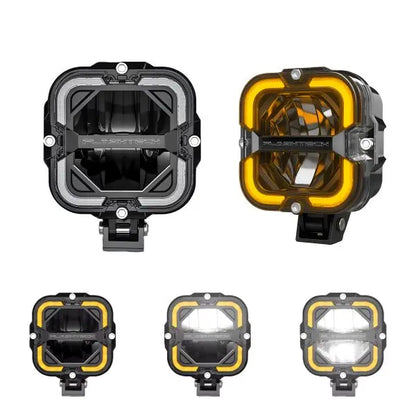

The Flashtech TRI-FORGE Off-Road Light delivers unmatched versatility and performance in a compact, durable housing built for the harshest conditions. This all-in-one lighting system features three distinct modes — Daytime Running Light (DRL), Low Beam, and High Beam — controlled via dual-beam optics for dynamic visibility day or night.

With 12,000 lumens per pair, the TRI-FORGE is powered by high-output LEDs mounted on a copper-core PCB for superior heat management. Light is focused through a thermally optimized reflector and protected by a UV-stable PMMA lens for maximum clarity, impact resistance, and performance longevity.

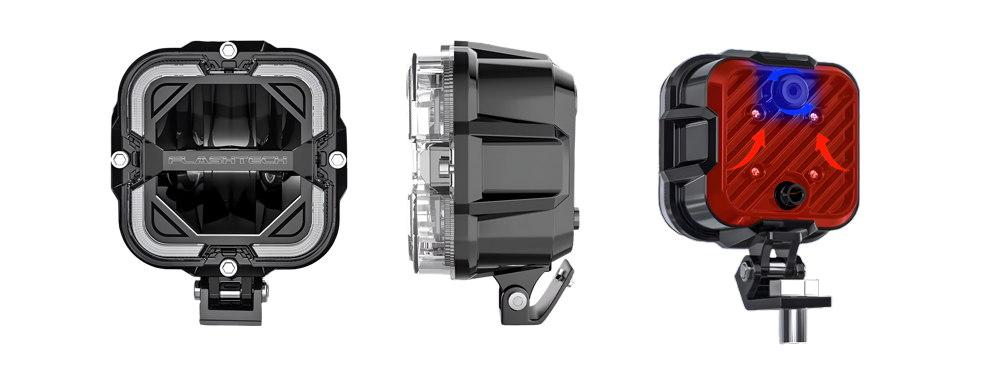

A rugged cast-aluminum housing with an integrated pressure equalization vent ensures a fully sealed system that's IP67 rated waterproof and dustproof.

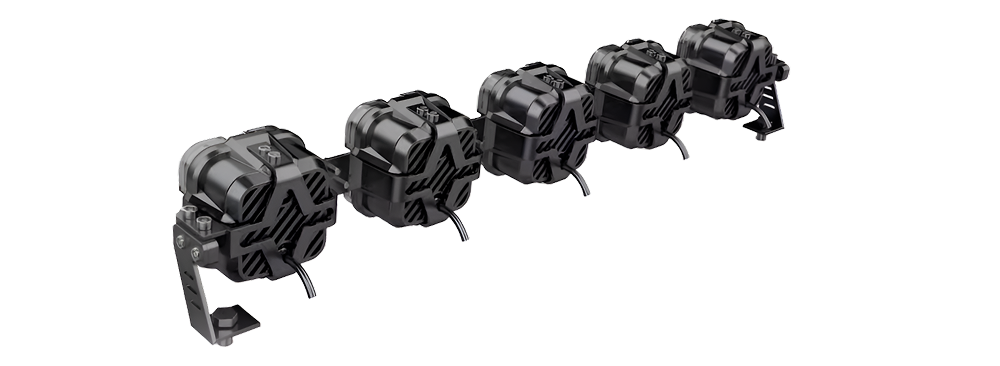

Designed for adaptability, each unit includes top and bottom mounting ports to accommodate future linking brackets—ideal for custom builds or multi-light arrays.

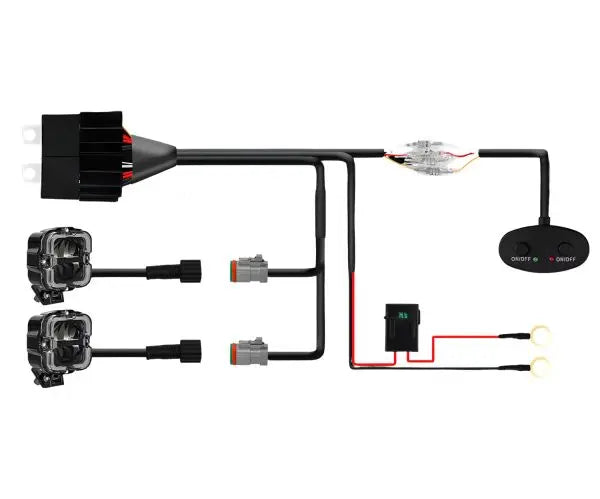

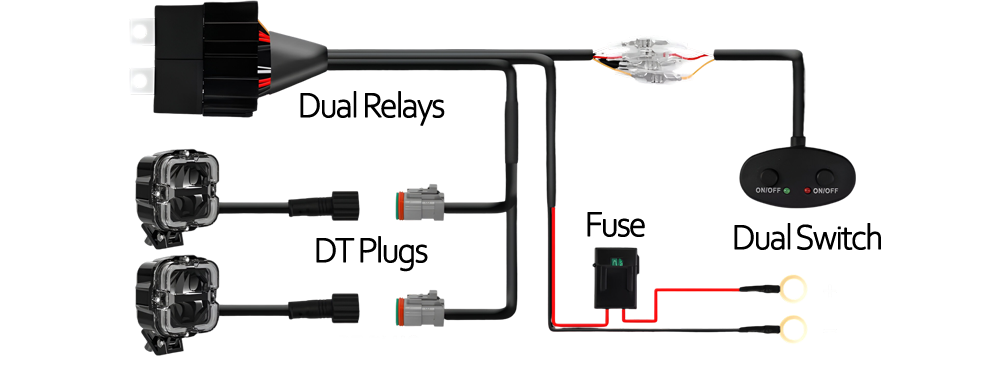

Each kit also includes a plug-and-play dual relay harness with a built-in switch for independent control of both high and low beam functions.

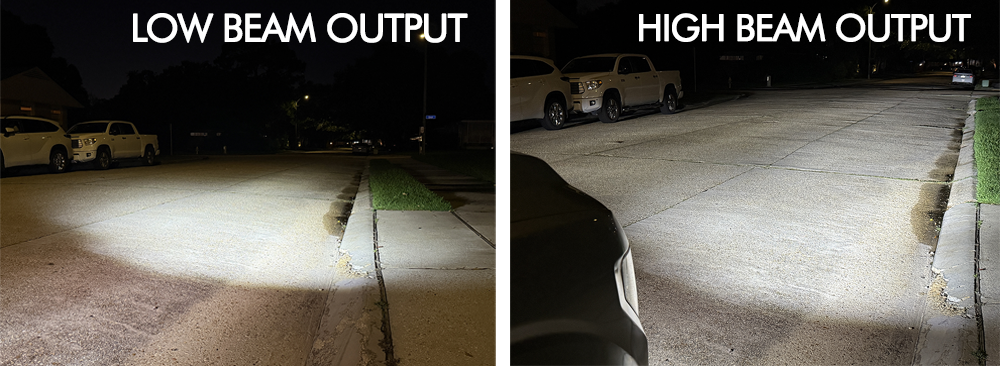

Light Output

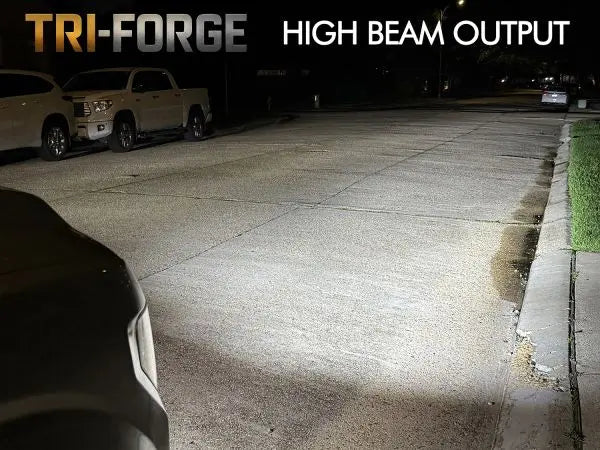

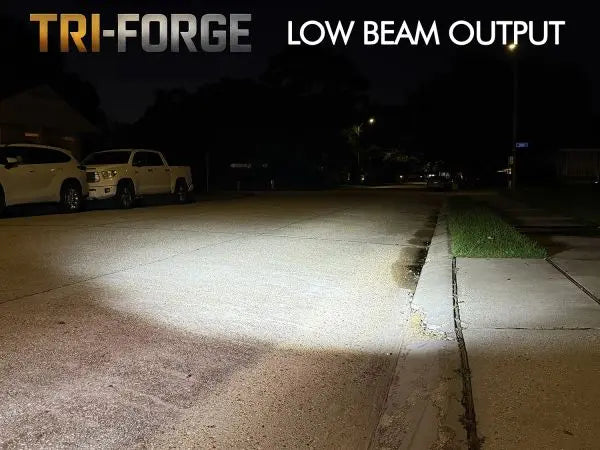

See the real-world performance in both low and high beam modes:

Key Features:

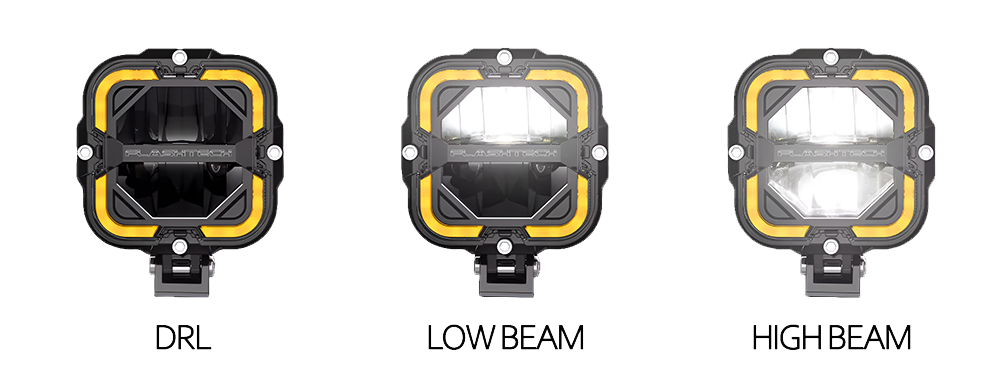

• Tri-Function Output: DRL / Low Beam / High Beam
• 12,000 Lumens (per pair)
• Dual-Beam with Integrated DRL System
• Copper-Core PCB for thermal efficiency
• Thermally Optimized Reflector
• PMMA Outer Lens for clarity and durability
• Rugged Cast-Aluminum Housing
• IP67 Waterproof and Dustproof Rating
• Pressure Equalization Vent prevents condensation
• Future-Ready: Top & Bottom Mounting Ports for Linking
• Includes Dual Relay Harness with Switch for High and Low Beam Control

Technical Specifications:

• Beam Patterns: DRL, Low Beam, High Beam
• Lumens (Per Pair): 12,000 LM
• Power: 90W (Per Pair)
• Operating Voltage: 9–32V
• Current Draw (12 V): 1.65 A (Low) / 3.12 A (High) per light (double for a matched pair)
• Color Temperature: 5700K
• IP Grade: IP67

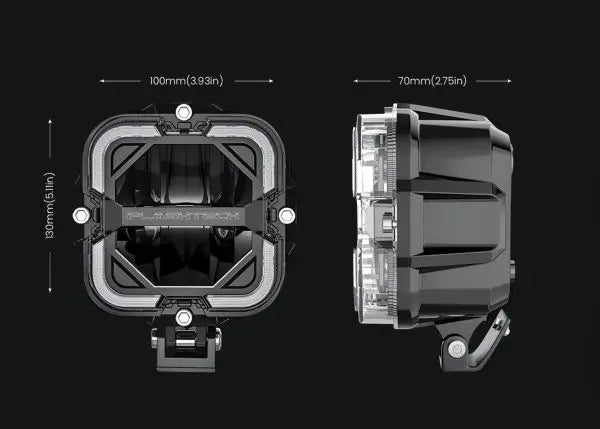

• Dimensions (L x H x D): 100 mm × 130 mm × 70 mm (3.93″ × 5.11″ × 2.75″)
• Mounting Style: Top/Bottom Bracket Ports

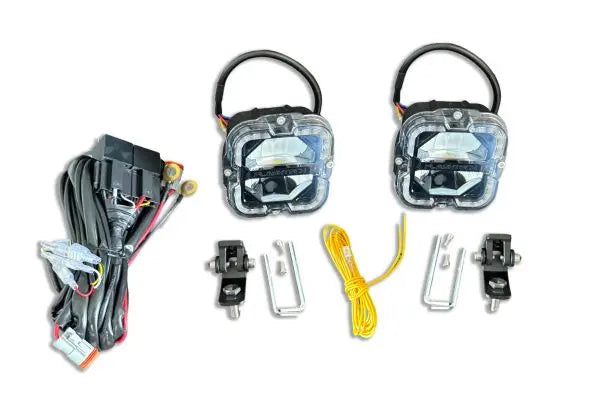

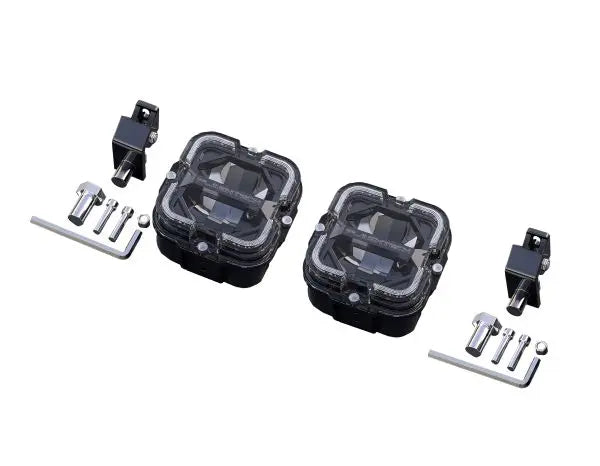

What's Included in Each Kit:

• (2) TRI-FORGE Cube Lights
• (1) Plug-and-Play Dual Relay Harness with Dual Push Button Switch
• (2) Mounting Brackets (one per light)
• (2) DRL Extension Wires
• Mounting Hardware for both lights
